• vacuum brazing oven

vacuum brazing oven

name: vacuum brazing oven

Customer customization:yes

speed:Stepless speed change

working space:customized


Machine Overview

The Aluminum vacuum brazing oven is a device that uses graphite elements for heating, and its maximum operating temperature can reach 750 ℃. This compact muffle furnace is very suitable for aluminum brazing industrial production and is an ideal equipment for producing plate and bar-type heat exchangers.

Aluminum vacuum brazing oven has the following characteristics and advantages:

  • Heating element: Graphite material is used as the heating element, which can provide a stable and uniform heating effect, thereby ensuring high-quality processing and processing of the material.
  • Temperature range: The furnace can reach a temperature of up to 750 ℃, which can meet the brazing needs of all aluminum materials.
  • Vacuum environment: This vacuum brazing oven has a vacuum function and can perform material treatment in an oxygen-free or inert gas environment, effectively preventing oxidation and pollution of the material surface.
  • Compact equipment: The aluminum vacuum brazing furnace is designed to be compact and occupy small space, which can meet the factory’s requirements for equipment volume and space limitations.

Vacuum Brazing Oven Quick Details

1maximum temperature750℃
2UsageVacuum aluminum
Brazing oven
3Chamber sizeCustomised
4Working temperature650℃
5Heating Rate0-20C/min
8WarrantyOne Year
9Heating elementFe-Mo-Cr sprial wire
Vacuum Brazing Oven
Vacuum Brazing Oven

Vacuum Brazing Oven Features

  • 1. Operation Temperature: 700℃ (750℃ for short time).
  • 2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
  • 3. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
  • 4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR (Silicon Controlled Rectifier).
  • 5. Power control with 51 segments programmable
vacuum brazing oven

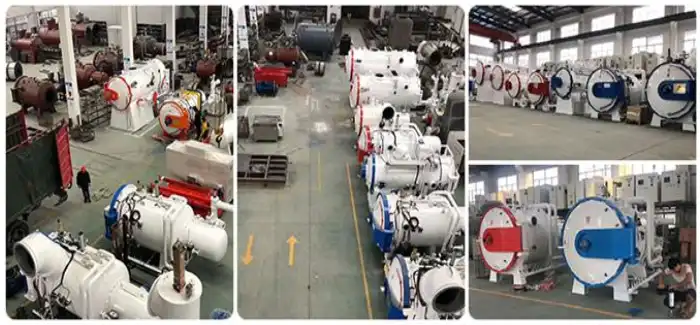

Our vacuum Brazing oven warehouse
Q: What is the delivery time of your vacuum furnace

A: The delivery time of our vacuum furnaces is 95 days, and that of some customized vacuum furnaces is 120 days

Q: What is the size of your vacuum furnace chamber?

A: Our vacuum furnace chamber size is customized according to customer requirements

Q: What is your vacuum furnace package

A: Our vacuum packaging is wooden cases, and some large-sized furnaces are packed with plastic film, Because of the packing in wooden cases, it may not fit into containers smoothly

Q: What are your after-sales service personnel for vacuum furnace

A: Our after-sales service includes installation of machines, technical training and free delivery of easily damaged parts.
