Aluminum radiator

Product Introduction

Aluminum radiator is an industrial product, which is uses to cool the internal combustion engine of automobiles and generators. The cooling liquid of the engine circulates in the radiator. The wind from the electronic fan takes away the heat from the radiator, so that the engine can maintain a proper temperature range for a long time and run smoothly

The overall dimensions of the radiator are design according to the engine power. Generally, the cooling area of the radiator is 1.1 times of the engine power, so the overall dimensions of each engine are different,

More than 10 years ago, people liked to use copper radiator, because the factory investment of copper radiator was very low and the production technology was not high. However, as the price of copper materials became more expensive, the advantage of aluminum radiator became more and more obvious. In a few years, I think copper radiator will disappear,

Types of aluminum radiator

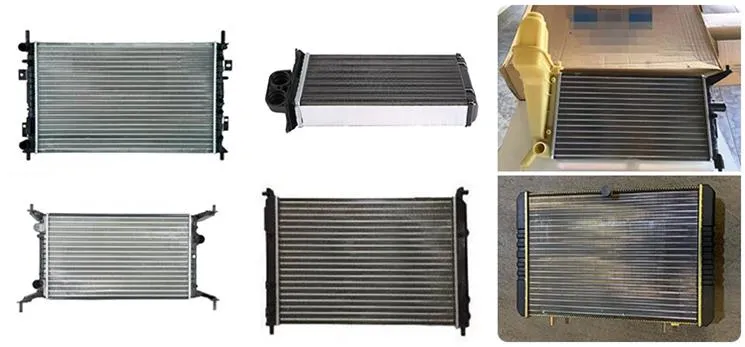

Mechanical radiator

The fin of the radiator adopts the stamping production process. The tube is tightly combined with the fin through expansion. The connection between the front plate and the tube is sealed with a rubber gasket,
The aluminum radiator is usually used in small displacement automobile engines,

The advantages of this radiator are obvious. The investment in this factory is very small, and the production speed is very fast. The price of this radiator is very cheap,

But its disadvantages are also obvious. The cooling effect is not as good as other types of radiator, and the service life is also the shortest of all radiator

Aluminum brazed type radiator

This is the most popular aluminum radiator at present. Almost all cars use this radiator structure. It is a whole welding method. All parts of the radiator are assemble together, and then welded at a high temperature of 620 ℃ to form a complete aluminum core of the radiator. Then a plastic tank is installed to conduct a leak test,

The advantage of this radiator is that the cooling effect is very good and the service life is very long. If the car does not have an accident, it is almost unnecessary to replace the radiator,
Its disadvantage is that its manufacturing process is relatively complex, and it needs to master the aluminum brazing technology. It requires a lot of money to invest in the production of this aluminium radiator

Plate and bar type radiator

This radiator uses plate parts, bar parts and fin, which are stack like building blocks to form a complete aluminum core. After high-temperature vacuum brazing, this aluminum radiator can withstand high vibration, so it is widely used in industrial fields, such as large generators, air compressors, large air separation equipment, etc

This radiator has the advantage of strong shock resistance. It does not need a lot of molds to produce radiator of different sizes, and has a very long service life

Its disadvantage is that it is very heavy, which means its price is a bit expensive. It is make entirely of aluminum material, and tanks require manual welding, so its production speed is very slow

How to select suitable aluminum radiator

The first thing to choose a radiator is that it can match your car or engine. This is the first important consideration. The second is to choose a radiator with better cost performance,
If you are a small household car, such as Peugeot 206, Suzuki Swift and Hyundai I10. You can choose aluminum radiator with mechanical structure, because the price of radiator with this structure is very good,

If your car is a high-end brand and the engine displacement is greater than 1.5T, we recommend you buy a brazing radiator, which has some cooling redundancy and is highly matched with your engine. Long term use of it will not affect your car’s power

If the aluminum radiator you need is uses in the industrial field, we suggest you choose plate and bar type radiator, which has strong seismic resistance

Aluminum radiator manufacturing machine

Chinese manufacturer of aluminum radiator

What aluminum radiator do we provide

Our main business is to sell radiator machines and help new factories produce high-quality products. We have many customers who produce various types of aluminum radiator. If you work in this industry, or you plan to start the radiator business, we can provide some help, such as introducing radiator manufacturers to you and getting good prices

If you plan to start a new factory to produce radiator, we can provide a lot of technical support, such as market research, machine purchase plan, radiator design, aluminium brazing technical training, product quality control plan, assistance in quality system certification and other services

Final summary

Aluminum radiator is one of the most important parts in modern industry. It is widely useing in automobile, generator, air compressor and other industries. Compared with copper radiator, its price is very low, and it has high seismic resistance and pressure resistance

In the factory of aluminium radiator for automobile engines, those machines can also produce microchannel condenser, evaporators and other products, and can mass produce many automobile parts without additional cost input. If you have plans to start producing aluminum radiator, you can contact us for more details
