Product Description

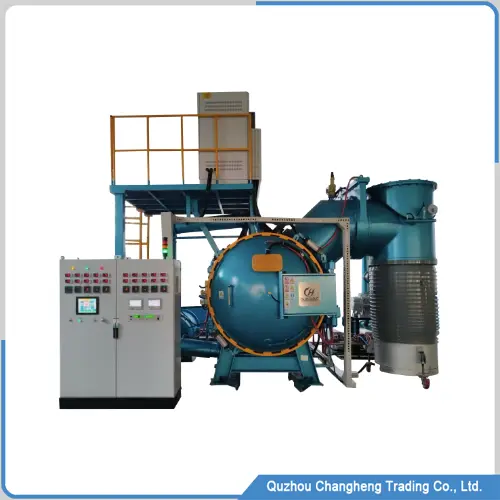

This is a used vacuum furnace. It uses a horizontal octagonal heating chamber, graphite heating method. The furnace body is manufactured in 2022. The outer wall material is 45Cr steel, the inner wall is 316 stainless steel, and there are 5 layers of stainless steel insulation barrier between the inner wall and the heating element.
This second hand vacuum furnace can currently operate normally and function normally. Its main use is aluminum brazing, which is useing in the automotive industry, oil coolers, evaporators, heat exchangers, etc., antennas, waveguides, etc. in the aerospace industry. In addition, it can also be use as a heat treatment process for vacuum annealed and tempered metal parts
Its maximum design temperature is 750 °C, the maximum vacuum pressure is ≤ 5 × 10-4 Pa, and the space size of the working area is 600*600*900mm.
Technical parameters of used vacuum furnace
- Cavity size: 600 * 600 * 900mm
- Manufacturing time: June 2022
- Heating type: graphite heating
- Maximum load: about 1200kg
- Limit temperature: 750 ℃
- Appearance color: off-white
- Temperature heating speed: 0~ 25 ℃/min
- Temperature uniformity: ≤ ± 3 ℃
- Temperature setting: ≤ ± 1.0 ℃
- Power: 120kw
- Ultimate vacuum pressure: ≤ 4 × 10-3 Pa
- Water cooling: Yes
- How to control: plc + touch screen
- Maximum noise: ≤ 79dB
China Vacuum Furnace Manufacturer Factory Video
The advantages of a used vacuum furnace
It’s almost new
The manufacturing time of this vacuum furnace is June 2022. The original owner just made some samples because they encountered some force majeure, so they gave up the project and are now going to sell this vacuum furnace. If you are looking for an aluminum brazing, then it is very suitable for you. You are equivalent to paying half price to get a brand new vacuum furnace.
Very good price
Because the original owner dealt with this vacuum furnace urgently, they want to sell this vacuum furnace quickly, so you have the initiative in terms of price. You can get this vacuum furnace at half price or lower than half price. If you miss this opportunity, the next time you encounter it may not be this excellent furnace.
Complete after-sales services
As a supplier of vacuum furnaces, our technical team is very professional. If you buy this second hand furnace, our engineers will disassemble it for you, pack it, smoothly transfer it into a container, and deliver it to your factory. Then install the vacuum furnace and debug it. Train your engineers to let them master all the technologies to run this furnace smoothly. We provide these complete after-sales services, you only need to pay a very small cost.
A wide range of applications
This second hand furnace is design for aluminum brazing. It not only has a high vacuum pressure, but also can be fill with inert gas in the cavity of the vacuum furnace. This function expands its application range. Under the condition that the maximum temperature does not exceed 750 °C, this vacuum furnace can temper or anneal metal parts for heat treatment.
Vacuum pump model
- Mechanical pump: HG-150
- Roots pump: ZJ-1200
- Oil diffusion pump: KT-1200, 60000L/s
- Holding pump: TRP-24
- High vacuum valve: GDQ-S1200
- Main valve: DGQ-J250
- Side valve: DGQ-J250
- Holding valve: DGQ-J25
Electronic control system of used vacuum furnace
- The furnace has a complete control system, and all the high-end brand parts are install in the control cabinet. There is a wall-mounted air conditioner outside the control cabinet, which intelligently controls the temperature inside the cabinet to keep it in the best working condition and will not malfunction due to excessive internal temperature
- The core parts of the control cabinet are Mitsubishi’s PLC and touch screen. The touch screen is displayed in Chinese. We can upgrade the touch screen language for you, such as Russian, Spanish or other languages.
- The touch screen has a variety of operation modes, which are specially set for different levels of engineers to access permissions, such as access mode, operation mode, engineer mode, and maintenance mode. Each operation mode can set different passwords, among which the access mode can only view the running data, and cannot modify the running data. The operation mode can set the running parameters and modify it. It has higher authority capabilities.
- This vacuum furnace can freely set the process and operating procedures, the vacuum furnace will run automatically, if the data exceeds the preset range, it will automatically alarm, and it will display the fault code on the screen, in addition, engineers can modify these operating procedures, keep, delete and other operations
- There are 9 N-type thermocouples in the furnace to collect temperature data. After analyzing the temperature by the Central Processor, the heating element is heat and stopped through the thermal management system to ensure the uniformity of the temperature to meet the precise requirements of heat treatment for temperature
After-sales services
- preliminary acceptance
At present, this machine has been installed in the factory and it can run normally. If you need to check this machine, we can make an appointment to go to the factory to check all the details of the machine.
- Packaging and shipping
This second-hand vacuum furnace is a large-scale machine. It is directly loaded into the container, and only its small parts are packed in wooden boxes.
- Delivery time
This is in stock. After you check it, we can deliver it. It will take about 1-2 weeks to decompose the vacuum furnace, and then it can be load into the container.
- Install a vacuum furnace
We provide installation services, 2-3 Chinese engineers are need to visit the buyer’s factory, and all engineer travel expenses need to be paying by the buyer
- Technical training
The technical training has two parts, one part is how to operate this vacuum furnace normally, as well as its repair and maintenance, and the other part is how to vacuum braze a high-quality product, which has been written for different aluminum brazing processes
