Product Overview
The evaporator stamping die is a mold installed on an ordinary press. It is an ordinary pressing die designed according to the size of the automobile evaporator. It has four high-precision guide pillars to control the error between the upper die and the lower die, so that the die can be punched 300000 times continuously without damage.
The key part of this mold is subjected to high-temperature quenching treatment, with a hardness of 60HRC. This hardness ensures that the mold core has strong wear resistance, and long-term use of the mold does not require worrying about dimensional deviations of the parts. The mold’s lifespan is also reliably guaranteed.
A complete evaporator is composed of many parts. Each part needs multiple stamping mold to complete production, such as cutting materials, pressing forming, bending edges, cutting holes and other molds. We can design a complete set of stamping mold according to the characteristics of your evaporator.
Technical data of evaporator stamping die
- Template material: EN C45
- Mold core material: Cr12MoV
- Needle material: SKH51
- Manufacturing type: CNC machining
- Stamping method: single stamping
- Guide pillar brand: China
- Spring type: customized
- Mold color: default green
- Insurance policy: Press 300000 times
- Evaporator size: Follow user design
- Packaging Type: Wooden Box
- Delivery time: Approximately 45-50 days
- Minimum order quantity: 1 set
Advantages of evaporator stamping die
It can be install on any stamping machine
This kind of mold adopts the traditional shape structure design. The upper mold has a round mold handle with a diameter of 38mm and a length of 70mm. It can be install on any brand of punching machine. You don’t need to worry about the matching between the mold and the stamping machine.
Very competitive prices
Our Evaporator stamping die factory is located in Wenzhou, China. Because our factory has strong industrial manufacturing capacity around it, the latest generation of CNC processing equipment serves us, and a very complete supplier of mold parts, which makes our evaporator molds have a high cost performance ratio.
Traditional structural design has a long service life
This is a single stamping mold, and the stamping machine completes one step of the part in one go. Therefore, the structure of the mold is very simple. It only has templates, cores, punch pins, springs, screws, guide posts, and other parts. Even if the mold is overloaded and pressed during normal use, it will not be damaged.
High precision manufacturing ensures that parts have no errors
The key parts of Evaporator stamping die are high-precision manufacture by CNC machine, and the parts are subject to high-temperature quenching treatment, and then the surface of the parts is subject to grinding treatment to ensure its smoothness. Therefore, the evaporator parts produced are almost free of errors, and the aluminum evaporator after brazing will not have any leakage.
Other types of evaporator machines
Evaporator fin machine
Equipment Overview This Evaporator fin machine for producing fin of automobile evaporators. It is composed of automatic feeding of raw materials, continuous forming of fin, automatic precise cutting and other parts. It uses an intelligent…
Vacuum annealing furnace for sell
Machine overview This is due to the vacuum annealing furnace that relieves metal stress. Its maximum design temperature is 1200 °C, which is uses for the annealing heat treatment of industrial parts or rare metals….
Fin machine manufacturer in China
Machine Summarize Fin machines are important equipment in modern industrial manufacturing, especially in industries such as automobiles, home appliances, and ships, playing an important role. There are various types of fin equipment, including extrusion, rolling,…
Aluminum brazing furnace of radiator and condenser
Machine Overview This aluminum brazing furnace is a specialized equipment for brazing aluminum radiators. It is a continuous brazing production line in an atmosphere-protected environment. This type of equipment has a wide range of applications…
Installation process of evaporator stamping die
Step 1
Clean the workbench of the stamping machine to ensure that there are no parts, tools, or other items on the workbench.
Step 2
Adjust the slider of the stamping machine to the bottom dead center, which means the pointer of the machine is at the 6 o’clock position.
Step 3
Rotate the screw of the slider to adjust its installation height, and then place the evaporator stamping die on the workbench of the stamping machine.
Step 4
First, tighten the handle screws of the upper mold, and then fix the screws of the lower mold.
Step 5
Adjust the slider stroke of the stamping machine to ensure that the mold is close with the appropriate gap.
Step 6
Place the material in the mold for testing once, and if necessary, adjust the stroke of the slider again.
Step 7
Before mass production, it is necessary to check that all screws have been tightened, and the Evaporator stamping die installation is completed at this position.
Acceptance before delivery

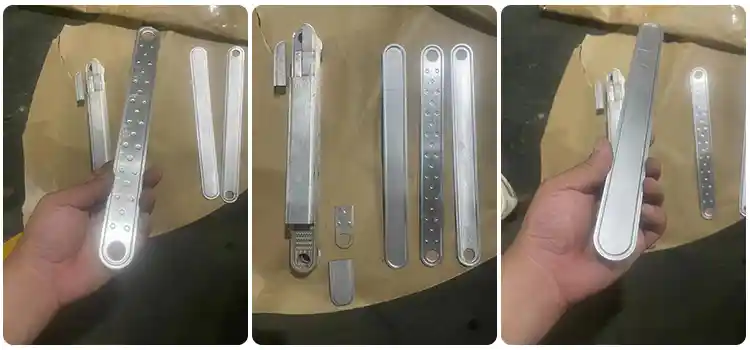

Our evaporator stamping die is design according to the parts provided by the buyer. The parts produced by the die should meet the buyer’s tolerance requirements, as well as dimensional requirements and service life. Usually, before the delivery of the die, we will provide samples of the parts for the buyer’s engineers to check the dimensions.
If the buyer needs to visit a factory in China to inspect the mold, we will prepare food and hotel for the buyer’s engineers.
If the size of the parts cannot meet the buyer’s requirements, we will manufacture a new mold without the buyer having to pay additional costs, but we will have to delay the delivery time.
When the mold manufacturing is complete, we will provide the packing list, and then send the stamping mold of the evaporator to the port in China.
Why choose our stamping die
- We focus on the production of Evaporator stamping die for automobile radiator, evaporators, condenser and oil cooler. The engineers have rich work experience to design professional pressing dies for you.

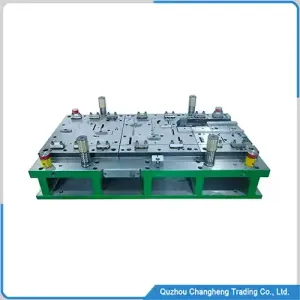

- You can buy the stamping mold you need from us in one stop. We not only provide single press dies, but also can manufacture continuous production dies for you, and ensure high precision tolerance range.

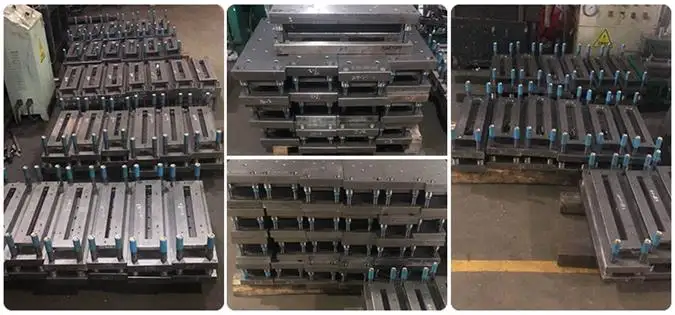

- The mold factory is located in a concentrated industrial park, and there are many CNC machines and equipment within 3 kilometers of the factory. They provide effective guarantees for the quality of my molds and can ensure the possibility of fast delivery in a short period of time.
