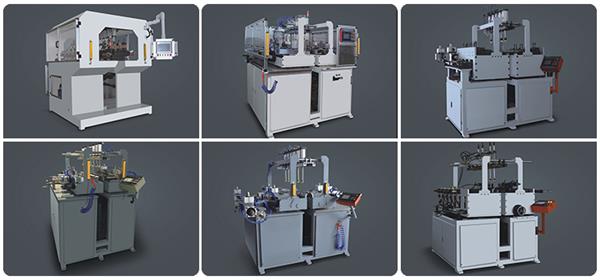

Automatic radiator tank crimping machine
1、 Equipment usage
This machine is mainly used for aluminum radiator assembly. The main plate on the radiator core body, the sealing gasket and the plastic water chamber are combined together, and the claw teeth on the main plate are bent and the edge feet of the water chamber are tightly hooked, so that the water chamber and the core body are closely integrated to form a closed container.
2、 Main features
The imported touch screen and PLC system are used to display and set the working state of the equipment (cloth distance and forward speed, etc.), and 250 kinds of data parameters can be stored, which can be called arbitrarily. It is especially suitable for various kinds of workpieces. The equipment adopts servo motor and servo driver imported from Taiwan to drive ball screw. Drive and control the clamping mechanism to make it step along the linear guide. The equipment is divided into long side buckle press and short side buckle press. When the buckle press acts, it can avoid and move forward according to the shape of the water chamber of the workpiece.
3、 Technical parameters
Radiator height: 1000mm
Radiator width: 850 mm
Radiator width: 120mm
Step length: adjustable
Number of folded teeth: Max 100
Total power: 2.5kW
Voltage level: ac-220 V; 50 Hz
Equipment dimension: 1900 × 1800 × 2200mm
